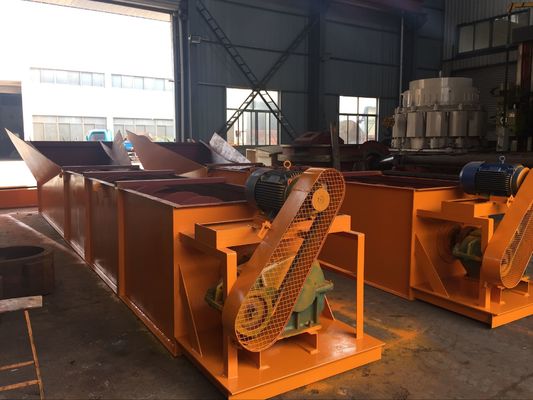

1115mm Spiral Screw Sand Washer Equipment XL Series

1115mm Spiral Screw Sand Washer Equipment XL Series
1115mm Spiral Screw Sand Washer Equipment XL Series

Large Image :  1115mm Spiral Screw Sand Washer Equipment XL Series

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: XL
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: 15 days
Payment Terms: L/C, T/T

1115mm Spiral Screw Sand Washer Equipment XL Series

Description
Color: Yellow Or Customized Capacity: According To The Model
Size: According To The Model Weight: According To The Model
Condition: New Powered By: Electrical Motor
High Light:

Spiral Screw Sand Washer Equipment

,

1115mm Screw Sand Washer

,

XL Series Spiral Screw Sand Washer

XL Series Screw Sand Washer



Sand washer is widely used for the washing of the material sand quarry, mining, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station,etc.



Features



1. High capacity

2. Heavy duty conveying paddles

3. Fabricated with heavy duty tubs

4. Oversize bearings and gears

5. Thick-walled shafts

6. Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox

7. The compound drive divides the operating load over an optimal combination of oversized helical and spur gears

Continuous grinding and abrading log washer paddles

8. Adjustable water discharge gates on both sides of lower end of the tub



Model Spiral Diameter(mm) Number of Spiral Max.Feed Size(mm) Capacity(t/h) Water Consumption(t/h) Weight(kg) Power(kW) Overall Dimension(mm)
XL915 915 1 ≤10 100 10-80 6200 11 8420*2180*3960
2XL915 915 2 ≤10 200 20-160 11500 11*2 8420*3970*3960
XL1115 1115 1 ≤10 175 20-150 10900 18.5 10770*3950*4860
2XL1115 1115 2 ≤10 350 40-300 17800 18.5*2 10770*5260*4860



Company Profile



Tonghui was firstly founded in 1968 as a state-owned company in machine building industry. It was reformed as a private enterprise in 1993 and firstly created the brand of “TONGHUI”. Tonghui is Jiaxing high-tech company and verified as technology-based SMEs of Zhejiang province. Tonghui has passed Quality Management System Certificate of GB/T19001-2000 ISO9001:2000. During the past 40 years, Tonghui people inherit the true spirit of “customer’s delight is our growth” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers.



Tonghui have 4 subsidiaries as follows, Tonghui Machinery, Tonghui Foundry, the Third Machinery Factory and Sanya Lingshui Changxing Quarry. Total production area covers 12000m2. Annual production turnover reaches to RMB 100 million (USD 14.7 million).

Tonghui is specialized in producing complete plant of mining crushing and screening machines. Main products are listed as follows, ZSW series Vibrating Feeder, PE series toggle Jaw Crusher, PF series Horizontal Shaft Impact Crusher, PL series Vertical Shaft Impact Crusher(sand making machine), TYP series Cone Crusher, HC series Cone Crusher, YKJ(SZZ) series Inclined Vibrating Screen, HLH series Horizontal Vibrating Screen and Conveyor System, etc.



Our TONGHUI brand crushers have been sold to 30 provinces all over China. Our mining crushers are also exported to France, Japan, Spain, Australia, India, Indonesia, Sri Lanka, Nigeria, etc.



Tonghui will continue to hold the TONGHUI spirit. Our Honest and Trust Worthy in business will lead us to satisfy more and more customers around the world.
