XL915 Screw Sand Washer 100tph Silica Sand Washing Machine

Certification
China ZheJiang Tonghui Mining Crusher Machinery Co., Ltd. certification
China ZheJiang Tonghui Mining Crusher Machinery Co., Ltd. certification
I'm Online Chat Now

XL915 Screw Sand Washer 100tph Silica Sand Washing Machine

XL915 Screw Sand Washer 100tph Silica Sand Washing Machine
XL915 Screw Sand Washer 100tph Silica Sand Washing Machine

Large Image :  XL915 Screw Sand Washer 100tph Silica Sand Washing Machine

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: XL
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit

XL915 Screw Sand Washer 100tph Silica Sand Washing Machine

Description
High Light:

XL915 Screw Sand Washer

,

100tph Silica Sand Washing Machine

,

Screw Sand Washer 100tph

Sand Wash Machine Srew Washer

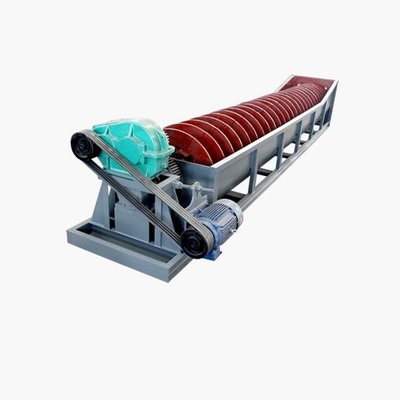

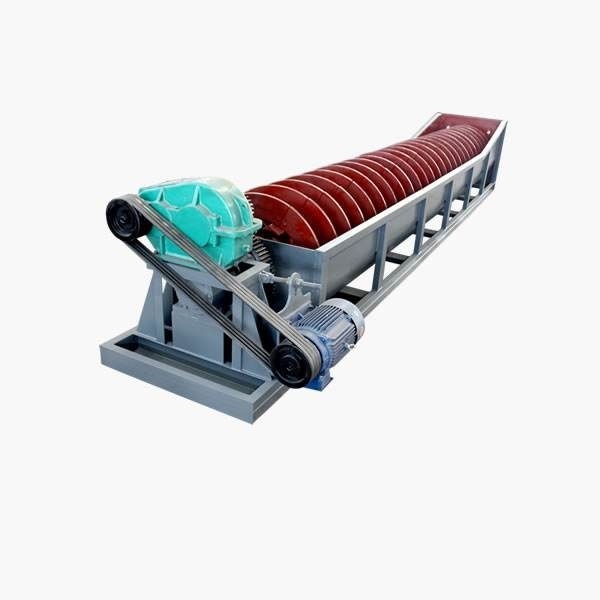

Spiral sand washer, also known as screw sand washer, is widely used for processing silica sand, river sand, artificial sand, etc. XL spiral sand washer is divided into single spiral and double spiral, which can be used to remove the dust and impurities in the sand for sand washing, classifying and grading, improving the quality of the final product. It is necessary for sand making plant.



Features:

1 Functions: cleaning, dewatering and grading.
2 Low water consumption, durable.
3 Impellers use wear resisting plate, polyurethane material, reduce running cost.
4 Designed to lower volume and investment.
5 Effectively control the sand loss.



Model Choose:

Model Spiral Diameter(mm) Number of Spiral Max.Feed Size(mm) Capacity(t/h) Water Consumption(t/h) Weight(kg) Power(kW) Overall Dimension(mm)
XL915 915 1 ≤10 100 10-80 6200 11 8420*2180*3960
2XL915 915 2 ≤10 200 20-160 11500 11*2 8420*3970*3960
XL1115 1115 1 ≤10 175 20-150 10900 18.5 10770*3950*4860
2XL1115 1115 2 ≤10 350 40-300 17800 18.5*2 10770*5260*4860



FAQ:

Q1: Are you factory or trade company?
A1: We are factory.
Q2: Where your products have been exported before?
A2: Our products have been sold to Africa, South America, Southeast of Asia and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. Spare parts will supply at any time.
Q5: What about the payment method?
A5: T/T, L/C.
