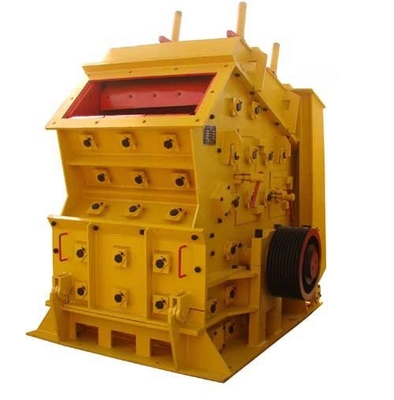

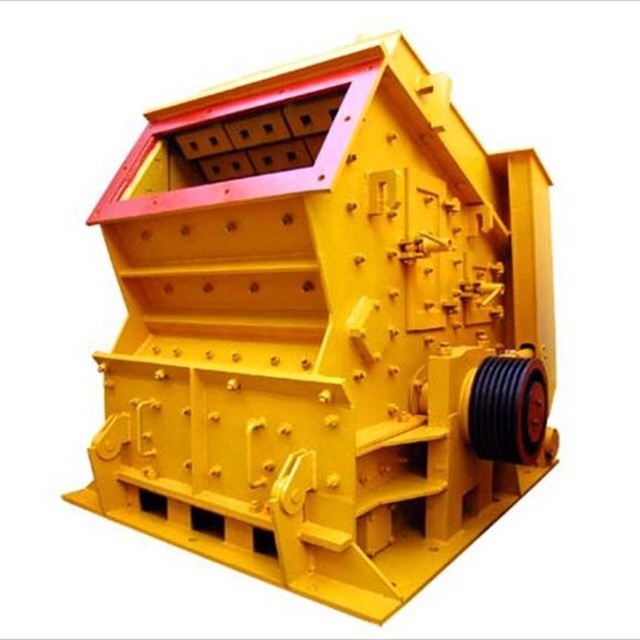

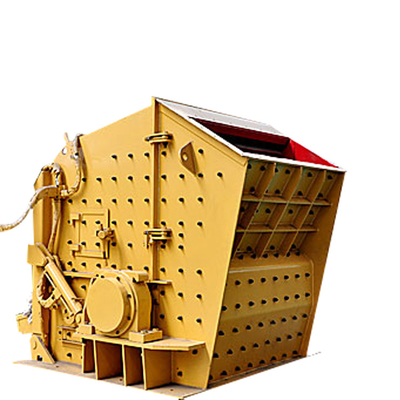

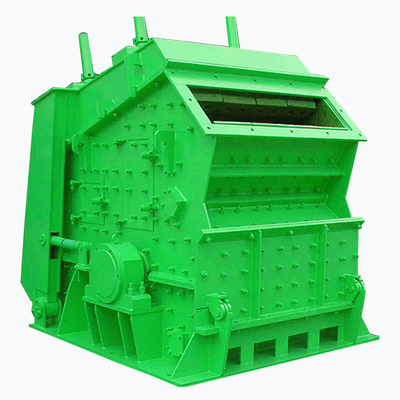

Large Image :  Impact Crusher PF Vertical Shaft Impact Crusher Machine

Product Details:
Place of Origin: China
Brand Name: TONGHUI
Model Number: PF
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: According to the model
Packaging Details: According to the model
Delivery Time: 30 work days
Payment Terms: L/C, T/T

Impact Crusher PF Vertical Shaft Impact Crusher Machine

Description
Core Components: Main Parts Application: Mining,Quarry,Ore,granite
Guarantee Of Impact Crusher: One Year Excluding Wearing Parts Motor Type: AC Motor
After-sales Service Provided:: Video Technical Support Capacity(t/h): 30-500tph
Installation Period: 10 Days
High Light:

AC Motor Impact Crusher Machine

,

Impact Stone Crusher 50t/h

,

350mm Feed Size Impact Stone Crusher



Impact Crusher Description



Advantages:

1> High reduction ratio and crushing efficiency;

2> No-board connection; the blow bar with high chrome (high chromed blow bar).

3> Impact plate with a special shape.

4> Crushed product with cubical shape.

5> Easy maintenance and reliable operation



Impact Crusher PF Vertical Shaft Impact Crusher Machine



Crushing Machine Impact Rock Crusher Ore Crusher adopts quality steels and wear-resistant parts,famous bearing,unique structure ,
high-accuracy rotor, multifunctional hydraulic operating system, which makes it superior and reliable.
Impact crusher is usually used as secondary crusher in the production line,which can help clients win more benefits.



Impact crusher is used for crushing coal , various rocks, constructing railway, expressway roadbed and dam area of power station, producing artificial dinas for the building industry, etc. Processing Material: Coarse, Medium and Fine materials (granite, limestone, concrete, etc.) Grain size is less than 500mm Compression strength is less than 150MPa.



Model Feed Opening Size Max.Feed Size Discharge Size Power Capacity Overall Size(L*W*H)
PF1007 400*730mm 300mm 20-60mm 55kW 30-50t/h 2400*1560*2660mm
PF1010 400*1080mm 350mm 20-60mm 75kW 50-80t/h 2400*1900*2620mm
PF1210 400*1080mm 350mm 20-60mm 132kW 70-120t/h 2620*2070*2720mm
PF1214 400*1430mm 350mm 20-60mm 160kW 130-180t/h 2720*2720*2890mm
PF1315 860*1520mm 500mm 20-60mm 220kW 160-250t/h 3164*2684*2600mm
PF1320 695*2030mm 650mm 20-60mm 220kW*2 280-450t/h 3553*3548*2996mm



The impact crusher has a compact structure and strong rigidness, and the rotor has big rotational inertia, It adopts high chromium plate so that it has shock resistance, abrasion resistance, and big impacting force. The hot sale models include pf1007, pf1010,pf1210,pf1214, pf1315, pf1320, etc.



Impact Crusher PF Vertical Shaft Impact Crusher Machine 0Impact Crusher PF Vertical Shaft Impact Crusher Machine 1









Impact Crusher Details Images



Working Principle

Impact crusher has two series: two-cavity and three-cavity impact crusher. It is a kind of crushing equipment using impact energy to crush material driven by motor. When the materials get into the area where the plate hammer effects, by whose high speed impact function, the crushed materials are thrown to the impact device above the rotor continuously, and then they are rebounded from the impact liner to the effect area of the blow bar to be crushed again. The materials are crushed from big-size to small-size in the impact cavity repeatedly. The process goes on until the materials are crushed to the required size and then discharged from the down part of the machine.

   Impact Crusher PF Vertical Shaft Impact Crusher Machine 2

Impact Crusher PF Vertical Shaft Impact Crusher Machine 3

Product Showcase

Impact Crusher PF Vertical Shaft Impact Crusher Machine 4



Impact Crusher PF Vertical Shaft Impact Crusher Machine 5



Company Profile

Impact Crusher PF Vertical Shaft Impact Crusher Machine 6

Zhejiang Tonghui Crushing Machinery Co.,Ltd.

(Used name as Haiyan Tonghui Mining Crusher Machinery Co.,Ltd) is a high-tech small and meduim enterprise in Zhejiang Province, and verified as a high-tech enterprise of Zhejiang province in 2018. Tonghui has passed Quality Management System Certificate of GB/T19001-2016 ISO9001:2015. Tonghui was founded in 1968 as a state-owned company and reformed as a private enterprise in 1993 as a professional manufacturer of complete mining machinery. It created the brand of “TONGHUI”. During the past 50 years, TONGHUI people inherit the true spirit of “CUSTMERS’ DELIGHT IS OUR GROWTH” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers. The company scale expands graually, and the brand popularity and recognition enhances day by day. TONGHUI is a Jiaxing famous brand and recognized as Zhejiang famous brand as well. Haiyan Tonghui Foundry Co.,Ltd is a subsidiary company of Zhejiang Tonghui with 28000m2 as its production factory area.



TONGHUI has a special foreign trade department with its independent import and export right. TONGHUI also has a professional after-sales service team, which provids exquisite and thoughful service. TONGHUI’s products are not only sold to 30 provinces and regions of China, but also to France, Spain, Australia, Sri Lanka, Indonesia, Chile, Ethiopia, Nigeria, etc. TONGHUI’s annual output value reached CNY100 million and sales profit reached CNY100 as well with CNY3.89 million as profits and taxes in 2012.



TONGHUI will continue to hold its spirit. Our Honest and Trust Worthy in business will lead us to satisfy more and more customers around the world.



Impact Crusher PF Vertical Shaft Impact Crusher Machine 7



Impact Crusher PF Vertical Shaft Impact Crusher Machine 8

Certifications



Impact Crusher PF Vertical Shaft Impact Crusher Machine 9

Customer Case

Impact Crusher PF Vertical Shaft Impact Crusher Machine 10

Packing&Shipping

Impact Crusher PF Vertical Shaft Impact Crusher Machine 11

FAQ:

Q: Which country have your products been exported?
A: We have been exported business for 40 years and we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...



Q: What Information should customers give us, so that we can be able to provide you suitable quotation and service.

A: What minerals are you separating?

What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?



Q: For providing you the right model, we need to know the following information:
(1)* What is the raw material for the production line?
(2)* What is the capacity per hour you required?
(3)* What is the maximum input size of the raw material?
