Secondary 30-500tph Ore Impact Rock Crusher 20-60mm Discharge

Secondary 30-500tph Ore Impact Rock Crusher 20-60mm Discharge
Secondary 30-500tph Ore Impact Rock Crusher 20-60mm Discharge

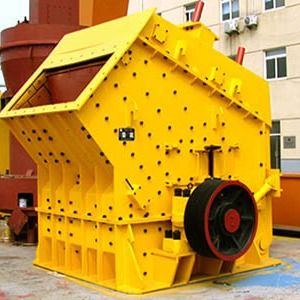

Large Image :  Secondary 30-500tph Ore Impact Rock Crusher 20-60mm Discharge

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: PF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: The machine is first fixed with iron plates to prevent sliding during transportation,and then wrapped with packaging film.The packaging is not bumped during transporation,and then reinforced with wooden boards.
Delivery Time: 15 days
Payment Terms: L/C, T/T

Secondary 30-500tph Ore Impact Rock Crusher 20-60mm Discharge

Description
Condition: New Application: Mining,Quarry,Ore,granite
Weight: According To Model Warranty: 1 Year
Type: Impact Crusher Motor Type: AC Motor
After-sales Service Provided: Video Technical Support Color: Customizable
Capacity(t/h): 30-500tph
High Light:

Secondary 500tph Ore Impact Rock Crusher

,

Ore Impact Rock Crusher 20mm Discharge

,

500tph Ore Impact Rock Crusher

Stone Crushing Machine Impact Rock Crusher Ore Crusher



Stone Crushing Machine Impact Rock Crusher Ore Crusher adopts quality steels and wear-resistant parts,famous bearing,unique structure ,
high-accuracy rotor, multifunctional hydraulic operating system, which makes it superior and reliable.
Impact crusher is usually used as secondary crusher in the production line,which can help clients win more benefits.



Impact crusher is used for crushing coal , various rocks, constructing railway, expressway roadbed and dam area of power station, producing artificial dinas for the building industry, etc. Processing Material: Coarse, Medium and Fine materials (granite, limestone, concrete, etc.) Grain size is less than 500mm Compression strength is less than 150MPa.



Model Choose:

Model

Feed Opening Size

Max. Feed Size

Discharge Size

Power

Capacity

Overall Size(L*W*H)

PF1007 400*730mm 300mm 20~60mm 55kW 30~50t/h 2400*1560*2660mm
PF1010 400*1080mm 350mm 20~60mm 75kW 50~80t/h 2400*1900*2620mm
PF1210 400*1080mm 350mm 20~60mm 132kW 70~120t/h 2620*2070*2720mm
PF1214 400*1430mm 350mm 20~60mm 160kW 130~180t/h 2720*2720*2890mm
PF1315 860*1520mm 500mm 20~60mm 220kW 160~250t/h 3164*2684*2600mm



Company Profile

Tonghui was firstly founded in 1968 as a state-owned company in machine building industry. It was reformed as a private enterprise in 1993 and firstly created the brand of “TONGHUI”. Tonghui is Jiaxing high-tech company and verified as technology-based SMEs of Zhejiang province. Tonghui has passed Quality Management System Certificate of GB/T19001-2000 ISO9001:2000. During the past 40 years, Tonghui people inherit the true spirit of “customer’s delight is our growth” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers.



FAQ:

Q1: Are you factory or trade company?
A1: We are a manufacturer with our own export right .

Q2: How will you help the customer to install the equipment?

A2: Our senior engineer will supply installation and training service on-line or on-site .

Q3: How about the wear parts supply?
A3: We will supply the wear parts with factory price . You can buy them from our factory.

Q4: What about after-sale service?
A4:12 months warranty for all kinds of products.
