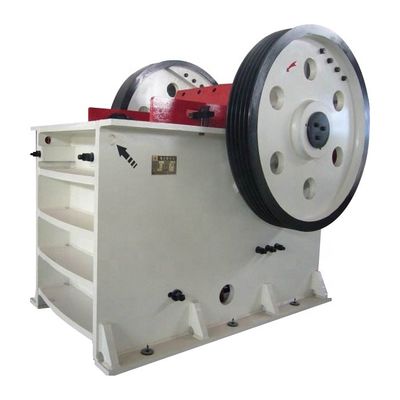

Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor

Certification
China ZheJiang Tonghui Mining Crusher Machinery Co., Ltd. certification
China ZheJiang Tonghui Mining Crusher Machinery Co., Ltd. certification
I'm Online Chat Now

Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor

Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor
Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor
Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor

Large Image :  Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor

Product Details:
Place of Origin: China
Brand Name: TONGHUI
Model Number: PE
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: According to the model
Packaging Details: According to the model
Delivery Time: 30 work days
Payment Terms: L/C, T/T

Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor

Description
Showroom Location: Other Capacity: 5-1000t
Size: According To The Model Key Selling Points: Competitive Price
Application: Quarry Motor Type: AC Motor
After Sale Service: Overseas
High Light:

Hard Jaw Rock Crusher

,

Yellow Jaw Crusher

,

AC Motor Jaw Crusher

Jaw Crusher Description





Mining Granite Basalt Hard Rock Stone Grinder Jaw Crusher

​Mining Granite Basalt Hard Rock Stone Grinder Yellow Jaw Crusher


The jaw crusher is mainly used for breaking rocks of high and medium hardness and with a maximum compressive strengthh of 320Mpa.PEseries is used in the primary crushing.while PEXseries the secondary crushing and fine crushing.

PE PEX series Single Toggle jaw crusher has the features of great crushing retio,uniform siges of promance,It can be used to crush material its compressive resistance not more than 320Mpa.

PE series is used in primary crushing,PEX series is used in secondary crushing and fine crushing.

Jaw Crusher Details Images

PE Jaw Crusher uses compressive force for breaking material. This mechanical pressure is achieved by the crusher's two jaws dies, one of which is stationary and the other is movable. These two vertical manganese jaw dies create a V-shaped cavity called the crushing chamber, where the top of the crushing chamber is larger than the bottom. Jaw Crushers are sized by the top opening of the crushing chamber.



Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 0



The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.



Model Feed Opening Size(mm) Max Feeding Size(mm) Capacity(t/h) Power(kW) Weight
(kg)
Overall Size
L×W×H(mm)
PE250*400 250×400 210 5-20 15 28000 1450×1300×1296
PE400*600 400×600 340 16-55 30 6500 1565×1732×1586
PE500*750 500×750 420 32-83 55 10300 1890×1916×1870
PE600*900 600×900 500 48-120 55 15500 2305*1876*2298
PE750*1060 750×1060 630 115-208 110 28000 2472×2450×2840
PE900*1200 900×1200 750 139-300 160 46000 3800×3166×3045
PE870*1060 870×1060 660 180-210 110 30500 3335×3182×3025
PE1200*1500 1200×1500 1000 400-880 220 90000 4800×3200×4120
PEX250*1000 250×1000 210 16-51 30 6500 1992×1530×1380
PEX250*1200 250×1200 210 20-60 37 7700 2192×1900×1430
PEX300*1300 300×1300 250 16-104 55 9000 2192×2000×1430





Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 1Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 2Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 3

Product Showcase

Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 4



Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 5



Company Profile

Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 6



Tonghui was firstly founded in 1968 as a state-owned company in machine building industry. It was reformed as a private enterprise in 1993 and firstly created the brand of “TONGHUI”. Tonghui is Jiaxing high-tech company and verified as technology-based SMEs of Zhejiang province. Tonghui has passed Quality Management System Certificate of GB/T19001-2000 ISO9001:2000. During the past 40 years, Tonghui people inherit the true spirit of “customer’s delight is our growth” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers.



Our TONGHUI brand crushers have been sold to 30 provinces all over China. Our mining crushers are also exported to France, Japan, Spain, Australia, India, Indonesia, Sri Lanka, Nigeria, etc.



Tonghui will continue to hold the TONGHUI spirit. Our Honest and Trust Worthy in business will lead us to satisfy more and more customers around the world.



Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 7



Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 8

Certifications



Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 9

Customer Case

Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 10

Packing&Shipping

Mining Granite Basalt Hard Rock Stone Yellow Jaw Crusher AC Motor 11

FAQ:

Q: Which country have your products been exported?
A: We have been exported business for 40 years and we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...



Q: What Information should customers give us, so that we can be able to provide you suitable quotation and service.

A: What minerals are you separating?

What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?



Q: For providing you the right model, we need to know the following information:
(1)* What is the raw material for the production line?
(2)* What is the capacity per hour you required?
(3)* What is the maximum input size of the raw material?
