OEM ODM Primary Jaw Rock Crusher 5-1000t/H 320Mpa Compressive Strength

Certification
China ZheJiang Tonghui Mining Crusher Machinery Co., Ltd. certification
China ZheJiang Tonghui Mining Crusher Machinery Co., Ltd. certification
I'm Online Chat Now

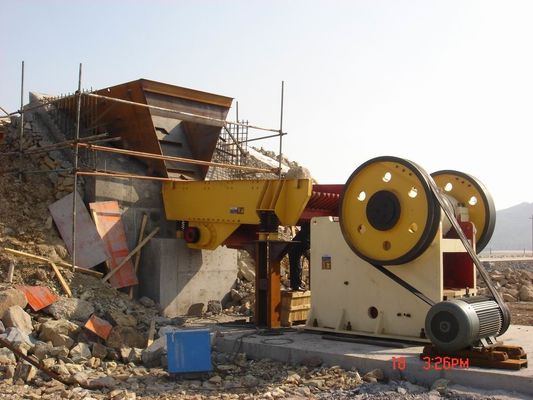

OEM ODM Primary Jaw Rock Crusher 5-1000t/H 320Mpa Compressive Strength

OEM ODM Primary Jaw Rock Crusher 5-1000t/H 320Mpa Compressive Strength
OEM ODM Primary Jaw Rock Crusher 5-1000t/H 320Mpa Compressive Strength

Large Image :  OEM ODM Primary Jaw Rock Crusher 5-1000t/H 320Mpa Compressive Strength

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: PE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: The machine is first fixed with iron plates to prevent sliding during transportation,and then wrapped with packaging film.The packaging is not bumped during transporation,and then reinforced with wooden boards.
Delivery Time: 30 days
Payment Terms: L/C, T/T

OEM ODM Primary Jaw Rock Crusher 5-1000t/H 320Mpa Compressive Strength

Description
Color: Customized Red, Blue, As Per Your Demand, Iron Grey Capacity: 5-1000t
Size: According To The Model Weight: According To The Model
Powered By: Electrical Motor Packaging Details: The Machine Is First Fixed With Iron Plates To Prevent Sliding During Transportation,and Then Wrapped With Packaging Film.The Packaging Is Not Bumped During Transporation,and Then Reinforced With Wooden Boards.
Type: Jaw Crusher Rock Crusher Primary Crusher Test&installation: Senior Professional Engineers Assigned
Dimension(l*w*h): 2035*1921*2000mm, 1150x1275x1240mm, According To Different Models, 1730*1730*1630, 1380*1750*1540 Mm
High Light:

OEM ODM Primary Jaw Rock Crusher

,

1000t/H primary jaw crusher

,

OEM 1000t/H Jaw Rock Crusher

primary crushing machine high capacity jaw crusher



Production Description:
The jaw crusher is mainly used for breaking rocks of high and medium hardness and with a maximum compressive strengthh of 320Mpa.PEseries is used in the primary crushing.while PEXseries the secondary crushing and fine crushing.

PE PEX series Single Toggle jaw crusher has the features of great crushing retio,uniform siges of promance,It can be used to crush material its compressive resistance not more than 320Mpa.

PE series is used in primary crushing,PEX series is used in secondary crushing and fine crushing.

Working Principle:
The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.


Model Feed Opening Size Max. Feed Size Capacity Power Overall Size(L*W*H) Weight
PEX250*400 250*400mm 210mm 5-20t/h 15kW 1450*1300*1296mm 2800kg
PEX250*1000 250*1000mm 210mm 16-51t/h 30kW 1992*1530*1380mm 6500kg
PEX250*1200 250*1200mm 210mm 25-60t/h 37kW 2192*1900*1430mm 7700kg
PEX300*1300 300*1300mm 250mm 16-104t/h 55kW 2192*2000*1430mm 9000kg
PE400*600 400*600mm 340mm 16-55t/h 30kW 1565*1732*1586mm 6500kg
PE500*750 500*750mm 420mm 32-83t/h 55kW 1890*1916*1870mm 10300kg
PE600*900 600*900mm 500mm 48-120t/h 55kW 2305*1876*2298mm 15500kg
PE750*1060 750*1060mm 630mm 115-208t/h 110kW 2472*2450*2840mm 28000kg
PE870*1060 870*1060mm 660mm 180-210t/h 110kW 2660*2556*2800mm 30500kg
PE900*1200 900*1200mm 750mm 139-300t/h 160kW 3800*3166*3045mm 46000kg
PE1200*1500 1200*1500mm 1020mm 400-800t/h 220kW 4800*3200*4120mm 92000kg


Company Profile


Tonghui have 4 subsidiaries as follows, Tonghui Machinery, Tonghui Foundry, the Third Machinery Factory and Sanya Lingshui Changxing Quarry. Total production area covers 12000m2. Annual production turnover reaches to RMB 100 million (USD 14.7 million).
Tonghui is specialized in producing complete plant of mining crushing and screening machines. Main products are listed as follows, ZSW series Vibrating Feeder, PE series toggle Jaw Crusher, PF series Horizontal Shaft Impact Crusher, PL series Vertical Shaft Impact Crusher(sand making machine), TYP series Cone Crusher, HC series Cone Crusher, YKJ(SZZ) series Inclined Vibrating Screen, HLH series Horizontal Vibrating Screen and Conveyor System, etc.
