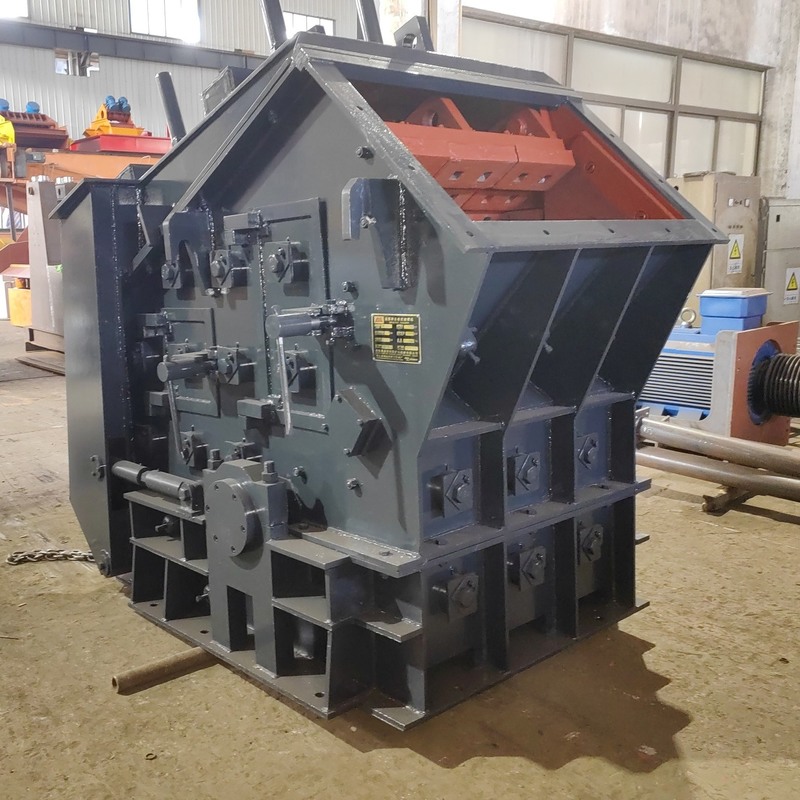

PF Series Impact Crusher With Efficient Crushing Capacity 30 - 450tph

PF Series Impact Crusher With Efficient Crushing Capacity 30 - 450tph
PF Series Impact Crusher With Efficient Crushing Capacity 30 - 450tph PF Series Impact Crusher With Efficient Crushing Capacity 30 - 450tph

Large Image :  PF Series Impact Crusher With Efficient Crushing Capacity 30 - 450tph

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: PF
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: 15 days
Payment Terms: L/C, T/T

PF Series Impact Crusher With Efficient Crushing Capacity 30 - 450tph

Description
Condition: New Application: Mining,Quarry,Ore,granite
Weight: According To Model Warranty: 1 Year
Type: Impact Crusher Motor Type: AC Motor
After-sales Service Provided: Video Technical Support Color: Customizable
High Light:

Mining PF Series Impact Crusher

,

450tph PF Series Impact Crusher

,

AC Motor PF Series Impact Crusher

PF Series Impact Crusher With Efficient Crushing Capacity 30-450tph



PF series impact crusher with efficient crushing capacity



This machine crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the materials will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine. The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support. The machine employs sell-weigh security device in its back frame. When other objects enter the impact cavity, they will be forced out of the machine by the impact rack in the front and back of the machine.
The Impact crusher is High reduction ratio and crushing efficiency; Impact plate with a special shape. Crushed product with cubical shape.



Model:

Model

Feed Opening Size

Max. Feed Size

Discharge Size

Power

Capacity

Overall Size(L*W*H)

PF1007 400*730mm 300mm 20~60mm 55kW 30~50t/h 2400*1560*2660mm
PF1010 400*1080mm 350mm 20~60mm 75kW 50~80t/h 2400*1900*2620mm
PF1210 400*1080mm 350mm 20~60mm 132kW 70~120t/h 2620*2070*2720mm
PF1214 400*1430mm 350mm 20~60mm 160kW 130~180t/h 2720*2720*2890mm
PF1315 860*1520mm 500mm 20~60mm 220kW 160~250t/h 3164*2684*2600mm



Impact crusher is widely applied in mining, transportation, energy, construction and chemical industry. They are ideal choice for crushing and screening. This machine features reasonable structure, high productivity, easy operation and maintenance and safe performance. The most outstanding advantage of this machine is that its finished power is in good, cubic shape and without tensility and cranny.
