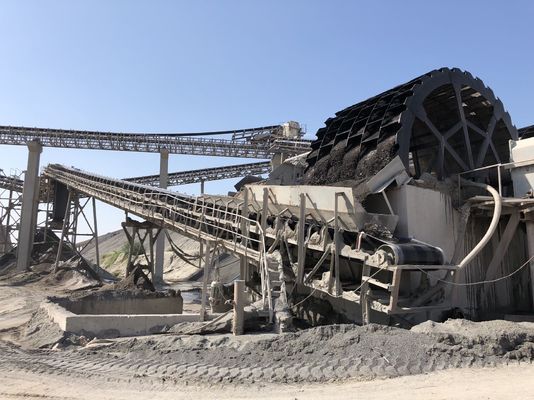

Mining 10rpm Wheel Bucket Sand Washer High Capacity TONGHUI

Mining 10rpm Wheel Bucket Sand Washer High Capacity TONGHUI
Mining 10rpm Wheel Bucket Sand Washer High Capacity TONGHUI

Large Image :  Mining 10rpm Wheel Bucket Sand Washer High Capacity TONGHUI

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: XL
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: 15 days
Payment Terms: L/C, T/T

Mining 10rpm Wheel Bucket Sand Washer High Capacity TONGHUI

Description
Color: Customerized Condition: New
Capacity: According To The Model Powered By: Electrical Motor
Size: Accord To The Model Weight: According To The Model
High Light:

TONGHUI Bucket Sand Washer

,

TONGHUI Mining Bucket Sand Washer

,

10rpm Wheel Bucket Sand Washer

Wheel Bucket Sand Washer high capacity



Wheel Bucket Sand Washer is used for cleaning and removing the dirt and contamination mixed in sandstones. It features of novel sealing structure, adjustable overflow weir and reliable transmission system, which ensures washing and dehydrating efficiently. It has been widely used in roads, water conservancy, construction, etc.



Features

Novel sealing structure
Adjustable overflow weir
Reliable transmission system



Specifications

Model Wheel Diameter(mm) Wheel Width(mm) Wheel Speed(r/m) Feed Size(mm) Motor Power(kW) Output(t/h)
XL2520 2500 2000 0-10 ≤5 18.5 80-120
XL3020 3000 2000 0-10 ≤5 22 130-250
XL3524 3500 2400 0-10 ≤5 30 150-450
XL4024 4000 2400 0-10 ≤5 30 180-500
XL6020 6000 2000 0-5 ≤5 37-55 260-750
XL8024 8000 2400 0-3 ≤5 37-90 400-1000



Company Profile





Tonghui have 4 subsidiaries as follows, Tonghui Machinery, Tonghui Foundry, the Third Machinery Factory and Sanya Lingshui Changxing Quarry. Total production area covers 12000m2. Annual production turnover reaches to RMB 100 million (USD 14.7 million).

Tonghui is specialized in producing complete plant of mining crushing and screening machines. Main products are listed as follows, ZSW series Vibrating Feeder, PE series toggle Jaw Crusher, PF series Horizontal Shaft Impact Crusher, PL series Vertical Shaft Impact Crusher(sand making machine), TYP series Cone Crusher, HC series Cone Crusher, YKJ(SZZ) series Inclined Vibrating Screen, HLH series Horizontal Vibrating Screen and Conveyor System, etc.



Our TONGHUI brand crushers have been sold to 30 provinces all over China. Our mining crushers are also exported to France, Japan, Spain, Australia, India, Indonesia, Sri Lanka, Nigeria, etc.
