Product Details:
|
Color: | Yellow | Condition: | New |
---|---|---|---|
Capacity: | According To The Model | Powered By: | Electrical Motor |
Size: | Accord To The Model | Weight: | According To The Model |
High Light: | 5MM Feed Sand Washing Machine,bucket wheel sand washing machine,OEM ODM Wheel Bucket Sand Washer |

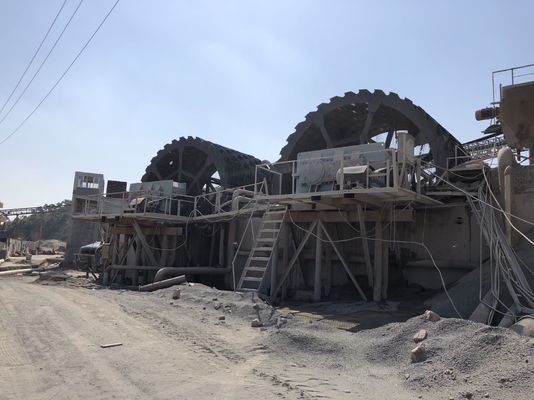

Wheel Bucket Sand Washer high capacity
Wheel Bucket Sand Washer is used for cleaning and removing the dirt and contamination mixed in sandstones. It features of novel sealing structure, adjustable overflow weir and reliable transmission system, which ensures washing and dehydrating efficiently. It has been widely used in roads, water conservancy, construction, etc.
Features
Novel sealing structure
Adjustable overflow weir
Reliable transmission system
Specifications
Model | Wheel Diameter(mm) | Wheel Width(mm) | Wheel Speed(r/m) | Feed Size(mm) | Motor Power(kW) | Output(t/h) |
XL2520 | 2500 | 2000 | 0-10 | ≤5 | 18.5 | 80-120 |
XL3020 | 3000 | 2000 | 0-10 | ≤5 | 22 | 130-250 |
XL3524 | 3500 | 2400 | 0-10 | ≤5 | 30 | 150-450 |
XL4024 | 4000 | 2400 | 0-10 | ≤5 | 30 | 180-500 |
XL6020 | 6000 | 2000 | 0-5 | ≤5 | 37-55 | 260-750 |
XL8024 | 8000 | 2400 | 0-3 | ≤5 | 37-90 | 400-1000 |
Company Profile
Tonghui have 4 subsidiaries as follows, Tonghui Machinery, Tonghui Foundry, the Third Machinery Factory and Sanya Lingshui Changxing Quarry. Total production area covers 12000m2. Annual production turnover reaches to RMB 100 million (USD 14.7 million).
Tonghui is specialized in producing complete plant of mining crushing and screening machines. Main products are listed as follows, ZSW series Vibrating Feeder, PE series toggle Jaw Crusher, PF series Horizontal Shaft Impact Crusher, PL series Vertical Shaft Impact Crusher(sand making machine), TYP series Cone Crusher, HC series Cone Crusher, YKJ(SZZ) series Inclined Vibrating Screen, HLH series Horizontal Vibrating Screen and Conveyor System, etc.
Our TONGHUI brand crushers have been sold to 30 provinces all over China. Our mining crushers are also exported to France, Japan, Spain, Australia, India, Indonesia, Sri Lanka, Nigeria, etc.
Tonghui will continue to hold the TONGHUI spirit. Our Honest and Trust Worthy in business will lead us to satisfy more and more customers around the world.
