5 Cavity VSI Crusher Sand Making Machine 1300 - 1700rpm For Mining Quarry

Certification
China ZheJiang Tonghui Mining Crusher Machinery Co., Ltd. certification
China ZheJiang Tonghui Mining Crusher Machinery Co., Ltd. certification
I'm Online Chat Now

5 Cavity VSI Crusher Sand Making Machine 1300 - 1700rpm For Mining Quarry

5 Cavity VSI Crusher Sand Making Machine 1300 - 1700rpm For Mining Quarry
5 Cavity VSI Crusher Sand Making Machine 1300 - 1700rpm For Mining Quarry

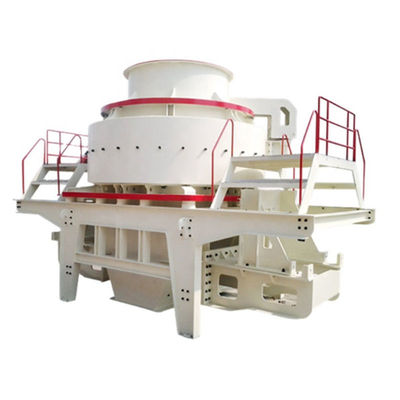

Large Image :  5 Cavity VSI Crusher Sand Making Machine 1300 - 1700rpm For Mining Quarry

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: TT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: 15 days
Payment Terms: L/C, T/T

5 Cavity VSI Crusher Sand Making Machine 1300 - 1700rpm For Mining Quarry

Description
Condition: New Capacity(t/h): According To The Model
Warranty: 1 Year Motor Type: AC Motor
Application: Mining,Quarry,stone,etc. Type: VSI Crusher
Factory Visit: Welcomed Warmly Color: Customizable
High Light:

VSI Crusher Sand Making Machine

,

1700rpm VSI Crusher Machine

,

5 Cavity VSI Crusher Machine

Sand Making Machine VSI Crusher



VSI crusher is knowed as vertical shaft impact crusher.



With one of most advanced technical design, TT vertical shaft impact crusher is a fine crushing machine which is using impact & grinding principle to crush materials.

By improving vsi crusher’s key parts like impeller and lubrication system, the capacity of TT vsi crusher is improved by more than 20%.

TT vsi crusher uses 5-cavity structure impeller(TT750 uses 4-cavity one), which can increase through capacity to increase capacity. Impeller is properly protected to increase the life for wearing parts.



Model

Impeller Dia.(mm)

Power

(kW)

Impeller Speed

r/min

Max. Feed Size mm

Through Capacity(T/h)

Weight(w/o motor)

kg

TT750 710 (75-132)*2 1800-2200 50 50-180 12000
TT850 910 (90-200)*2 1400-1800 50 100-250 12500
TT950 910 (160-250)*2 1300-1700 50 200-350 14500



Company Profile



Tonghui was firstly founded in 1968 as a state-owned company in machine building industry. It was reformed as a private enterprise in 1993 and firstly created the brand of “TONGHUI”. Tonghui is Jiaxing high-tech company and verified as technology-based SMEs of Zhejiang province. Tonghui has passed Quality Management System Certificate of GB/T19001-2000 ISO9001:2000. During the past 40 years, Tonghui people inherit the true spirit of “customer’s delight is our growth” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers.



Tonghui have 4 subsidiaries as follows, Tonghui Machinery, Tonghui Foundry, the Third Machinery Factory and Sanya Lingshui Changxing Quarry. Total production area covers 12000m2. Annual production turnover reaches to RMB 100 million (USD 14.7 million).

Tonghui is specialized in producing complete plant of mining crushing and screening machines. Main products are listed as follows, ZSW series Vibrating Feeder, PE series toggle Jaw Crusher, PF series Horizontal Shaft Impact Crusher, PL series Vertical Shaft Impact Crusher(sand making machine), TYP series Cone Crusher, HC series Cone Crusher, YKJ(SZZ) series Inclined Vibrating Screen, HLH series Horizontal Vibrating Screen and Conveyor System, etc.



Our TONGHUI brand crushers have been sold to 30 provinces all over China. Our mining crushers are also exported to France, Japan, Spain, Australia, India, Indonesia, Sri Lanka, Nigeria, etc.



Tonghui will continue to hold the TONGHUI spirit. Our Honest and Trust Worthy in business will lead us to satisfy more and more customers around the world.
