Product Details:
|
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Circular | Application: | Sand,ore,stone |
| Capacity: | According To The Model | Vibrating Frequency(r/min): | 700-900 |
| Layer: | 1-4 Layers | Function: | Screening\separation\sorting\sieving |
| High Light: | Aggregate Vibrating Screen Equipment,900r/min Vibrating Screen Machine,900r/min Vibrating Screen Equipment |
||

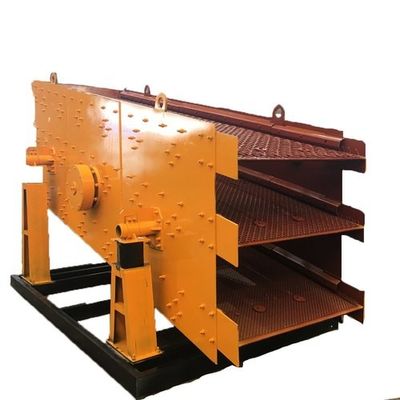

Vibrating Screen Description
Vibrating Screen Equipment Aggregate Vibrating Screen Mesh
Vibrating screening machine is widely used to classify the minerals such as stone,sand, ore and othe kinds of minerals in mining, quarry, construction, building material industry. It can be featured with 2 layers, 3 layers, 4 layers. It is used to sort and classify the materials accoding to the particle size by its circular vibration.
Sand Vibrating screen advantage
1 Stable structure and powerful vibration.
2 Working in a high-efficiency speed.
3 Less noise and dust.
4 Easy maintenance and lower repairing fee.
| Model | Deck Qty |
Capacity (m³/h) |
Max. Feeding Size(mm) | Power(kW) | Weight(kg) |
| 1YKJ1230 | 1 | 30~60 | 200 | 11 | 2800 |
| 2YKJ1230 | 2 | 30~60 | 200 | 11 | 3100 |
| 3YKJ1230 | 3 | 30~60 | 200 | 11 | 3500 |
| 1YKJ1545 | 1 | 40~80 | 200 | 15 | 4100 |
| 2YKJ1545 | 2 | 40~80 | 200 | 15 | 4500 |
| 3YKJ1545 | 3 | 40~80 | 200 | 15 | 4800 |
| 4YKJ1545 | 4 | 40~80 | 200 | 15 | 5000 |
| 1YKJ1650 | 1 | 45~100 | 200 | 15 | 5400 |
| 2YKJ1650 | 2 | 45~100 | 200 | 15 | 5600 |
| 3YKJ1650 | 3 | 45~100 | 200 | 15 | 5900 |
| 4YKJ1650 | 4 | 45~100 | 200 | 15 | 6200 |
| 1YKJ1854 | 1 | 50~120 | 200 | 22 | 6300 |
| 2YKJ1854 | 2 | 50~120 | 200 | 22 | 7400 |
| 3YKJ1854 | 3 | 50~120 | 200 | 22 | 8500 |
| 4YKJ1854 | 4 | 50~120 | 200 | 22 | 8900 |
| 1YKJ1860 | 1 | 50~140 | 200 | 22 | 7500 |
| 2YKJ1860 | 2 | 50~140 | 200 | 22 | 8700 |
| 3YKJ1860 | 3 | 50~140 | 200 | 22 | 9500 |
| 4YKJ1860 | 4 | 50~140 | 200 | 22 | 9700 |
| 1YKJ2160 | 1 | 80~200 | 200 | 30 | 7000 |
| 2YKJ2160 | 2 | 80~200 | 200 | 30 | 7850 |
| 3YKJ2160 | 3 | 80~200 | 200 | 30 | 9850 |
| 4YKJ2160 | 4 | 80~200 | 200 | 30 | 11000 |
| 1YKJ2460 | 1 | 90~260 | 200 | 22 | 6200 |
| 2YKJ2460 | 2 | 90~260 | 200 | 30 | 9200 |
| 3YKJ2460 | 3 | 90~260 | 200 | 30 | 11500 |
| 4YKJ2460 | 4 | 90~260 | 200 | 30 | 12500 |
| 1YKJ2868 | 1 | 110~480 | 200 | 45 | 10000 |
| 2YKJ2868 | 2 | 110~480 | 200 | 45 | 12800 |
| 3YKJ2868 | 3 | 110~480 | 200 | 45 | 13500 |
| 1YKJ3068 | 1 | 140~520 | 200 | 45 | 10800 |
| 2YKJ3068 | 2 | 140~520 | 200 | 45 | 13200 |
| 3YKJ3068 | 3 | 140~520 | 200 | 45 | 14000 |
Vibrating Screen Details Images
Working Principle
The motor makes the exciter swing rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward successively on the mesh.Material from the feeder evenly enters into the machine's feeding inlet, with multilayer sieves to produce several of products and unqualified products on the screen or under the screen, then discharging from the outlet respectively. It can be used in the automatic production line.
Product Showcase
Company Profile
Zhejiang Tonghui Crushing Machinery Co.,Ltd.
(Used name as Haiyan Tonghui Mining Crusher Machinery Co.,Ltd) is a high-tech small and meduim enterprise in Zhejiang Province, and verified as a high-tech enterprise of Zhejiang province in 2018. Tonghui has passed Quality Management System Certificate of GB/T19001-2016 ISO9001:2015. Tonghui was founded in 1968 as a state-owned company and reformed as a private enterprise in 1993 as a professional manufacturer of complete mining machinery. It created the brand of “TONGHUI”. During the past 50 years, TONGHUI people inherit the true spirit of “CUSTMERS’ DELIGHT IS OUR GROWTH” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers. The company scale expands graually, and the brand popularity and recognition enhances day by day. TONGHUI is a Jiaxing famous brand and recognized as Zhejiang famous brand as well. Haiyan Tonghui Foundry Co.,Ltd is a subsidiary company of Zhejiang Tonghui with 28000m2 as its production factory area.
TONGHUI has a special foreign trade department with its independent import and export right. TONGHUI also has a professional after-sales service team, which provids exquisite and thoughful service. TONGHUI’s products are not only sold to 30 provinces and regions of China, but also to France, Spain, Australia, Sri Lanka, Indonesia, Chile, Ethiopia, Nigeria, etc. TONGHUI’s annual output value reached CNY100 million and sales profit reached CNY100 as well with CNY3.89 million as profits and taxes in 2012.
TONGHUI will continue to hold its spirit. Our Honest and Trust Worthy in business will lead us to satisfy more and more customers around the world.
Certifications
Customer Case
Packing&Shipping
FAQ:
Q: Which country have your products been exported?
A: We have been exported business for 40 years and we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...
Q: What Information should customers give us, so that we can be able to provide you suitable quotation and service.
A: What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q: For providing you the right model, we need to know the following information:
(1)* What is the raw material for the production line?
(2)* What is the capacity per hour you required?
(3)* What is the maximum input size of the raw material?
