Circular Rock Vibrating Screen Machine For Stone Sorting 50 - 400m3/H

Circular Rock Vibrating Screen Machine For Stone Sorting 50 - 400m3/H
Circular Rock Vibrating Screen Machine For Stone Sorting 50 - 400m3/H Circular Rock Vibrating Screen Machine For Stone Sorting 50 - 400m3/H

Large Image :  Circular Rock Vibrating Screen Machine For Stone Sorting 50 - 400m3/H

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: YKJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: follow demands
Payment Terms: L/C, T/T

Circular Rock Vibrating Screen Machine For Stone Sorting 50 - 400m3/H

Description
Condition: New Warranty: 1 Year
Type: Circular Application: Sand,ore,stone
Capacity: 50-400m3/h Color: Orange Or Customized
Layer: 1-4 Layers Function: Screening\separation\sorting\sieving
High Light:

Rock Vibrating Screen Machine

,

Circular Vibrating Screen Machine

Rock Vibrating Screen For Stone Sorting with Capacity 50-400m3/h

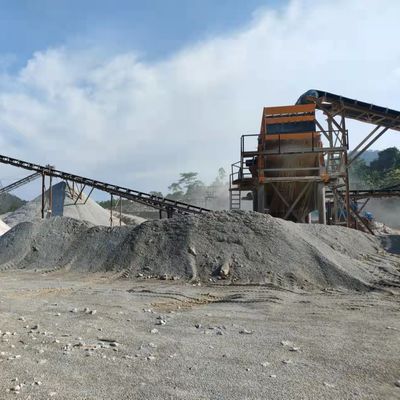

These series of Vibrating Screen are used to separate materials into various sizes for further processing or for end use. Depending on your needs. The material is separated by passing it through a vibrating screen box which has a number of different sized screens, or meshes, which the material falls through like a sieve, the material falls onto attached conveyors which stock pile the end products. The end products can then be used in the building and construction industries.



This seris screen with high-efficiency,the centrifugal force which generated by eccentric shaft high speed rotation making the main machine in periodic motion,and motor is connected with exciter through V-belt.



Working Principle:
It is an advanced product with more than 30 years' experience. Working principle: by the motor force and adjusting the amplitude of the eccentric shaft, vibrating screen moves quickly like a circle. Materials in the sieve case can be saperated and screened from the sieve pore in this process.



Model Selection:

Model

Deck Qty

Capacity

(m³/h)

Max. Feeding Size(mm)

Power(kW)

Weight(kg)

1YKJ1230 1 30~60 200 11 2800
2YKJ1230 2 30~60 200 11 3100
3YKJ1230 3 30~60 200 11 3500
1YKJ1545 1 40~80 200 15 4100
2YKJ1545 2 40~80 200 15 4500
3YKJ1545 3 40~80 200 15 4800
4YKJ1545 4 40~80 200 15 5000
1YKJ1650 1 45~100 200 15 5400
2YKJ1650 2 45~100 200 15 5600
3YKJ1650 3 45~100 200 15 5900
4YKJ1650 4 45~100 200 15 6200
1YKJ1854 1 50~120 200 22 6300
2YKJ1854 2 50~120 200 22 7400
3YKJ1854 3 50~120 200 22 8500
4YKJ1854 4 50~120 200 22 8900
1YKJ1860 1 50~140 200 22 7500
2YKJ1860 2 50~140 200 22 8700
3YKJ1860 3 50~140 200 22 9500
4YKJ1860 4 50~140 200 22 9700
1YKJ2160 1 80~200 200 30 7000
2YKJ2160 2 80~200 200 30 7850
3YKJ2160 3 80~200 200 30 9850
4YKJ2160 4 80~200 200 30 11000
1YKJ2460 1 90~260 200 22 6200
2YKJ2460 2 90~260 200 30 9200
3YKJ2460 3 90~260 200 30 11500
4YKJ2460 4 90~260 200 30 12500
1YKJ2868 1 110~480 200 45 10000
2YKJ2868 2 110~480 200 45 12800
3YKJ2868 3 110~480 200 45 13500
1YKJ3068 1 140~520 200 45 10800
2YKJ3068 2 140~520 200 45 13200
3YKJ3068 3 140~520 200 45 14000



Our Service:

Service is one of the most important parts in the whole business. We are always devoted to meeting customer’s need. We insist on providing customers with one-stop service, from model choosing, installation and test run, personnel training, technical support to maintenance.

Before service: Before the contract is signed, we will act as a good adviser and assistant to help customers choose the most suitable equipment and production line, all for the capacity increasing and cost reducing. We design and produce machines according to the actual requirements of customers.

During and after service: After the contract is signed, (1)we will send our most experienced technicians to make an inspection of the working site, (2)our technicians will help customers make a decision on site planning and designing, (3)technology department will offer a installation foundation drawing, (4)finally, technicians will assist customer in the construction. When all the equipment has been delivered to the site, our company will send staff to assist customer in installation and run test. Our company will also provide customer with free training to help customer master the use and simple maintenance of the machines. Once the machine is out of order at work, our company will set up a clear solution during 24 hours after customer’s phone call. Recover the production first, and then ascertain where responsibility lies.



About Us:

Tonghui was firstly founded in 1968 as a state-owned company in machine building industry. It was reformed as a private enterprise in 1993 and firstly created the brand of “TONGHUI”. Tonghui is Jiaxing high-tech company and verified as technology-based SMEs of Zhejiang province. Tonghui has passed Quality Management System Certificate of GB/T19001-2000 ISO9001:2000. During the past 40 years, Tonghui people inherit the true spirit of “customer’s delight is our growth” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers.
