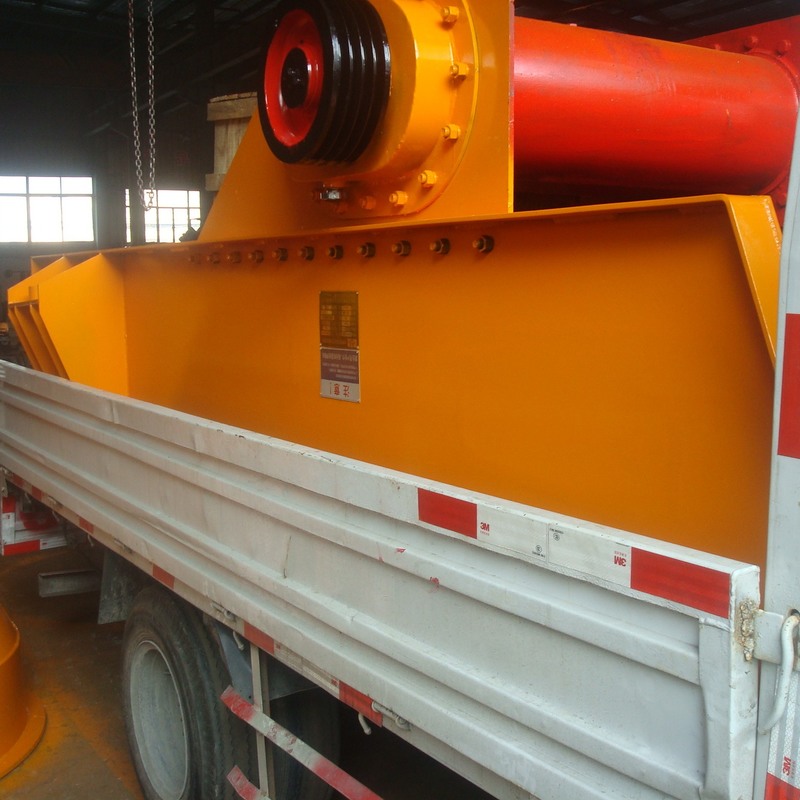

ZSW490*110 Linear Vibrating Feeder 120-280t/H For Chemical Industry

ZSW490*110 Linear Vibrating Feeder 120-280t/H For Chemical Industry
ZSW490*110 Linear Vibrating Feeder 120-280t/H For Chemical Industry

Large Image :  ZSW490*110 Linear Vibrating Feeder 120-280t/H For Chemical Industry

Product Details:
Place of Origin: JIAXING
Brand Name: TONGHUI
Model Number: ZSW420*110
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: 10 days
Payment Terms: T/T, L/C

ZSW490*110 Linear Vibrating Feeder 120-280t/H For Chemical Industry

Description
Condition: New Warranty: 1 Year
Capacity(t/h): 120-240 Application: Mining,Coal,metallurgy,Quarry
Weight: 4740 Kgs Power Type: Electric
After-sales Service Provided: Online Support
High Light:

ZSW490*110 Linear Vibrating Feeder

,

ZSW490*110 Linear Vibrating Feeder

,

Linear Vibrating Feeder 280t/h

Mining Stone Feeder Vibration Feeder



Our company's feeder series is a kind of linear direction vibration feeder. it makes a feature of smooth vibrating, reliable in operation, long service life and suitable for feeding, material into the crusher while screening away soil contained in the raw bmaterial. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.



Working Principle:

The vibrating feeder is mainly composed of a vibrating frame,a spring ,a vibrator,a motor vibrating frame and a motor.The exciter is composed of two eccentric shafts of a specific position and meshed by gears.When assembling,the two gears must be meshed by the mark,and driven by the motor to rotate the two eccentric shafts,thereby generating a huge synthetic linear exciting force.The body is forced to vibrate on the support spring,and the material is powered by the vibration,and the sliding and throwing motion is performed on the through,so that the material is moved forward to achieve the feeding purpose.When the material passes through the sieve strip on the tank body,the smaller material can fall through the gap of the screen strip,and the screening effect can be achieved without going through the crushing process of the next lane.



Model Selection:

Model

Capacity(t/h)

Max. Feeding Size(mm)

Power(kW)

Weight(kg)

ZSW380*95 96~160 500 11 4,082
ZSW420*110 120~240 580 15 4,740
ZSW490*110 120~280 630 15 5,352
ZSW600*130 400~560 750 22 7,800
ZSW600*150 600~1000 800 37 10,500



Company Profile

Zhejiang Tonghui Crushing Machinery Co.,Ltd. (Used name as Haiyan Tonghui Mining Crusher Machinery Co.,Ltd) is a high-tech small and meduim enterprise in Zhejiang Province, and verified as a high-tech enterprise of Zhejiang province in 2018. Tonghui has passed Quality Management System Certificate of GB/T19001-2016 ISO9001:2015. Tonghui was founded in 1968 as a state-owned company and reformed as a private enterprise in 1993 as a professional manufacturer of complete mining machinery. It created the brand of “TONGHUI”. During the past 50 years, TONGHUI people inherit the true spirit of “CUSTMERS’ DELIGHT IS OUR GROWTH” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers. The company scale expands graually, and the brand popularity and recognition enhances day by day. TONGHUI is a Jiaxing famous brand and recognized as Zhejiang famous brand as well. Haiyan Tonghui Foundry Co.,Ltd is a subsidiary company of Zhejiang Tonghui with 28000m2 as its production factory area.



FAQ:

Q1: How about the quality of your products?
A1: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery.
Q2: How about the price?
A2: We are manufactory, and we can give you lower price than those trade companies.
Q3: Do you provide after-sale service?
A3: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and throughly solve your problems.
Q4: Do you provide equipment operation training?
A4: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q5: Can you test our samples?
A5: Yes. You can send your samples to us for test and analysis.
Q6: Do you provide beneficiation flow chart?
A6: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation.
