Product Details:
|
Type: | Jaw Crusher | Weight: | 28000kgs |
---|---|---|---|
Capacity(t/h): | 5-20t/h | Motor Type: | AC Motor |
Application: | Mining,Quarry,Construction,limestone | Condition: | New |
Warranty: | 1 Year | Factory Visit: | Welcomed Warmly |
High Light: | Quarry 15kW PE Jaw Crusher,110kW PE Jaw Crusher,Jaw Crusher Plant 250*400mm |

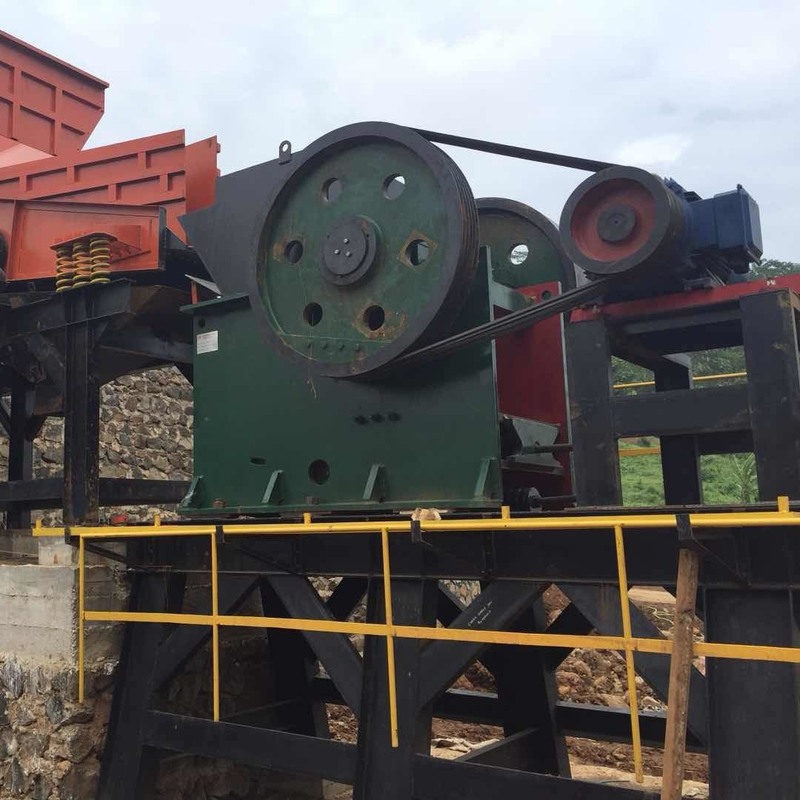

Primary Stone Jaw Crushing Machine
Jaw crusher is a kind of heavy-duty stone crushing machine which is widely used as primary crusher. This jaw crusher is usually used as primary crusher. It is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.
Features:
1 | big crushing ratio |
2 | uniform products size |
3 | easy maintenance |
4 | long useful lifetime |
Model |
Feed Opening Size |
Max. Feed Size |
Capacity |
Power |
Overall Size(L*W*H) |
Weight |
PEX250*400 | 250*400mm | 210mm | 5-20t/h | 15kW | 1450*1300*1296mm | 2800kg |
PEX250*1000 | 250*1000mm | 210mm | 16-51t/h | 30kW | 1992*1530*1380mm | 6500kg |
PEX250*1200 | 250*1200mm | 210mm | 25-60t/h | 37kW | 2192*1900*1430mm | 7700kg |
PEX300*1300 | 300*1300mm | 250mm | 16-104t/h | 55kW | 2192*2000*1430mm | 9000kg |
PE400*600 | 400*600mm | 340mm | 16-55t/h | 30kW | 1565*1732*1586mm | 6500kg |
PE500*750 | 500*750mm | 420mm | 32-83t/h | 55kW | 1890*1916*1870mm | 10300kg |
PE600*900 | 600*900mm | 500mm | 48-120t/h | 55kW | 2305*1876*2298mm | 15500kg |
PE750*1060 | 750*1060mm | 630mm | 115-208t/h | 110kW | 2472*2450*2840mm | 28000kg |
PE870*1060 | 870*1060mm | 660mm | 180-210t/h | 110kW | 2660*2556*2800mm | 30500kg |
PE900*1200 | 900*1200mm | 750mm | 139-300t/h | 160kW | 3800*3166*3045mm | 46000kg |
PE1200*1500 | 1200*1500mm | 1020mm | 400-800t/h | 220kW | 4800*3200*4120mm | 92000kg |
Our Services:
Service is one of the most important parts in the whole business. We are always devoted to meeting customer’s need. We insist on providing customers with one-stop service, from model choosing, installation and test run, personnel training, technical support to maintenance.
Before service: Before the contract is signed, we will act as a good adviser and assistant to help customers choose the most suitable equipment and production line, all for the capacity increasing and cost reducing. We design and produce machines according to the actual requirements of customers.
During and after service: After the contract is signed, (1)we will send our most experienced technicians to make an inspection of the working site, (2)our technicians will help customers make a decision on site planning and designing, (3)technology department will offer a installation foundation drawing, (4)finally, technicians will assist customer in the construction. When all the equipment has been delivered to the site, our company will send staff to assist customer in installation and run test. Our company will also provide customer with free training to help customer master the use and simple maintenance of the machines. Once the machine is out of order at work, our company will set up a clear solution during 24 hours after customer’s phone call. Recover the production first, and then ascertain where responsibility lies.
Company Profiles:
Zhejiang Tonghui Crushing Machinery Co.,Ltd.
(Used name as Haiyan Tonghui Mining Crusher Machinery Co.,Ltd) is a high-tech small and meduim enterprise in Zhejiang Province, and verified as a high-tech enterprise of Zhejiang province in 2018. Tonghui has passed Quality Management System Certificate of GB/T19001-2016 ISO9001:2015. Tonghui was founded in 1968 as a state-owned company and reformed as a private enterprise in 1993 as a professional manufacturer of complete mining machinery. It created the brand of “TONGHUI”. During the past 50 years, TONGHUI people inherit the true spirit of “CUSTMERS’ DELIGHT IS OUR GROWTH” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers. The company scale expands graually, and the brand popularity and recognition enhances day by day. TONGHUI is a Jiaxing famous brand and recognized as Zhejiang famous brand as well. Haiyan Tonghui Foundry Co.,Ltd is a subsidiary company of Zhejiang Tonghui with 28000m2 as its production factory area.
TONGHUI is specialized in producing complete plant of mining crushing and screening machines. Main products include ZSW series vibrating feeder, PE series jaw crusher, HS series jaw crusher, PF series horizontal shaft impact crusher, TT series vertical shaft impact crusher(sand making machine), TYP series single cylinder cone crusher, HC(F) series cone crusher, TH high speed cone crusher, HLH series tri-axis horizontal vibrating screen, YKJ(SZZ) series inclined vibrating screen, etc.
TONGHUI has a special foreign trade department with its independent import and export right. TONGHUI also has a professional after-sales service team, which provids exquisite and thoughful service. TONGHUI’s products are not only sold to 30 provinces and regions of China, but also to France, Spain, Australia, Sri Lanka, Indonesia, Chile, Ethiopia, Nigeria, etc. TONGHUI’s annual output value reached CNY100 million and sales profit reached CNY100 as well with CNY3.89 million as profits and taxes in 2012.
TONGHUI will continue to hold its spirit. Our Honest and Trust Worthy in business will lead us to satisfy more and more customers around the world.
