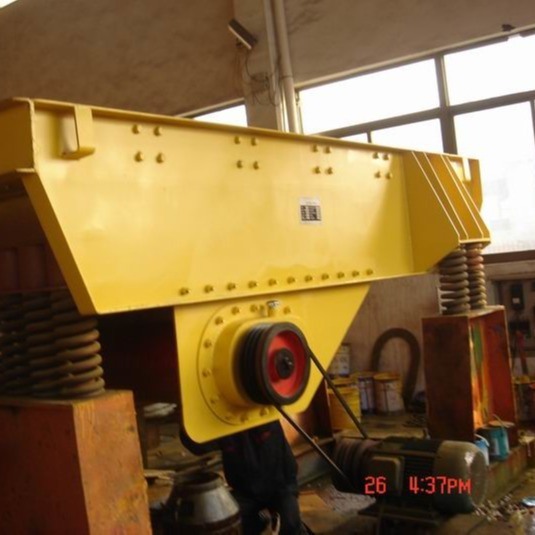

Stone Sand 15kw Linear Vibrating Feeder ZSW420*110 Mineral Processing

Stone Sand 15kw Linear Vibrating Feeder ZSW420*110 Mineral Processing
Stone Sand 15kw Linear Vibrating Feeder ZSW420*110 Mineral Processing

Large Image :  Stone Sand 15kw Linear Vibrating Feeder ZSW420*110 Mineral Processing

Product Details:
Place of Origin: JIAXING
Brand Name: TONGHUI
Model Number: ZSW420*110
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: 10 days
Payment Terms: T/T, L/C

Stone Sand 15kw Linear Vibrating Feeder ZSW420*110 Mineral Processing

Description
Condition: New Warranty: 1 Year
Capacity(t/h): 120-240 Application: Mining,Coal,metallurgy,Quarry
Weight: 4740 Kgs Power Type: Electric
After-sales Service Provided: Online Support
High Light:

Linear Vibrating Feeder ZSW420*110

,

5kw sand vibrating feeder Mineral Processing

,

Sand 15kw Linear Vibrating Feeder

Stone Sand Mining Feeder Vibrating Machine



Stone Sand Mining Feeder Vibrating Machine can feed the block and granular materials into the receiving device evenly, regularly and continuously from the storage bin. In the gravel production line, the crushing machine can feed continuously and evenly, and the material is coarsely sieved. It is widely used in crushing and screening combined equipment in metallurgy, coal mining, mineral processing, building materials, chemical industry, abrasives and other industries.



Features:

1 Small size, light weight and simple structure
2 Easy installation and maintenance, low operating costs
3 High efficiency and large feeding capacity
4 Low noise, low power consumption, high power factor
5 Smooth vibration, uniform feeding and long service life



Working Principle:

The vibrating feeder is mainly composed of a vibrating frame,a spring ,a vibrator,a motor vibrating frame and a motor.The exciter is composed of two eccentric shafts of a specific position and meshed by gears.When assembling,the two gears must be meshed by the mark,and driven by the motor to rotate the two eccentric shafts,thereby generating a huge synthetic linear exciting force.The body is forced to vibrate on the support spring,and the material is powered by the vibration,and the sliding and throwing motion is performed on the through,so that the material is moved forward to achieve the feeding purpose.When the material passes through the sieve strip on the tank body,the smaller material can fall through the gap of the screen strip,and the screening effect can be achieved without going through the crushing process of the next lane.





Model Seletion:

Model

Capacity(t/h)

Max. Feeding Size(mm)

Power(kW)

Weight(kg)

ZSW380*95 96~160 500 11 4,082
ZSW420*110 120~240 580 15 4,740
ZSW490*110 120~280 630 15 5,352
ZSW600*130 400~560 750 22 7,800
ZSW600*150 600~1000 800 37 10,500



Our Service and FAQ:

●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.


●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.


●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.


●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.





●How is the quality of your products?

Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.



●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.

●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.

●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice;
