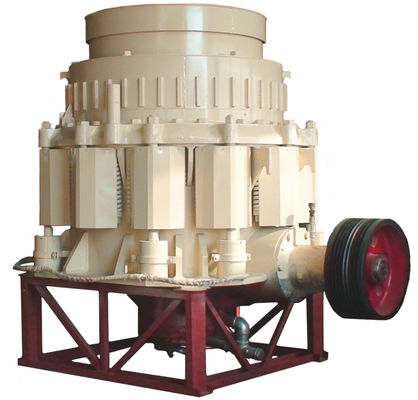

HCC Spring Compound Cone Crusher 110-132kW High Crushing Ratio

HCC Spring Compound Cone Crusher 110-132kW High Crushing Ratio
HCC Spring Compound Cone Crusher 110-132kW High Crushing Ratio

Large Image :  HCC Spring Compound Cone Crusher 110-132kW High Crushing Ratio

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: HCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: 15 days
Payment Terms: L/C, T/T

HCC Spring Compound Cone Crusher 110-132kW High Crushing Ratio

Description
Type: Cone Crusher Motor Type: AC Motor
Capacity(t/h): According To The Model Condition: New
Warranty: 1 Year Application: Mining,construction,Quarry,etc
After-sales Service Provided: Online Support
High Light:

HCC spring cone crusher

,

132kW Spring Compound Cone Crusher

,

132kW spring cone crusher

HCC Spring Compound Stone Cone Crusher



Cone crusher is widely used in the industries of metallurgy, building material, road construction, chemical engineering & silicate, suitable for crushing all kinds of ores and rocks with hardness of medium or above. This cone crusher features the high crushing ratio, high efficiency, high handling capacity, low operation cost, easy adjustment and economical operation.
This Cone Crusher adopts grease sealing so as to prevent the watering and draining system from being blocked and avoid the defect of easy mix of water and oil. The spring safety system is the protection unit against overload, and keeps the crushing chamber from being damaged by foreign substance or iron pieces.
The cavity type of cone crusher is decided by the stone characteristics. HCC is used in coarse crushing, HCF is used in medium size crushing, HCS is used in fine crushing and HCSS is used in extra fine crushing.



Model

Max. Feed Size

Discharge Size

Power

Weight

Capacity

HCC45 180mm 13~38mm 110~132kW 15500kg 115~260t/h
HCF45 130mm 10~25mm 110~132kW 15500kg 100~175t/h
HCS45 90mm 10~19mm 110~132kW 15500kg 80~140t/h
HCSS45 60mm 10~19mm 110~132kW 15500kg 74~130t/h
HCC54 215mm 19~51mm 180~220kW 26300kg 200~420t/h
HCF54 160mm 16~25mm 180~220kW 26300kg 155~220t/h
HCS54 115mm 13~22mm 180~220kW 26300kg 150~230t/h
HCSS54 80mm 10~19mm 180~220kW 26300kg 122~200t/h
HCC66 260mm 22~63mm 250~300kW 50000kg 330~725t/h
HCF66 200mm 16~25mm 250~300kW 50000kg 230~330t/h
HCS66 140mm 10~19mm 250~300kW 50000kg 185~340t/h
HCSS66 95mm 10~19mm 250~300kW 50000kg 180~335t/h



Company Profile



Tonghui was firstly founded in 1968 as a state-owned company in machine building industry. It was reformed as a private enterprise in 1993 and firstly created the brand of “TONGHUI”. Tonghui is Jiaxing high-tech company and verified as technology-based SMEs of Zhejiang province. Tonghui has passed Quality Management System Certificate of GB/T19001-2000 ISO9001:2000. During the past 40 years, Tonghui people inherit the true spirit of “customer’s delight is our growth” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers.



Tonghui have 4 subsidiaries as follows, Tonghui Machinery, Tonghui Foundry, the Third Machinery Factory and Sanya Lingshui Changxing Quarry. Total production area covers 12000m2. Annual production turnover reaches to RMB 100 million (USD 14.7 million).

Tonghui is specialized in producing complete plant of mining crushing and screening machines. Main products are listed as follows, ZSW series Vibrating Feeder, PE series toggle Jaw Crusher, PF series Horizontal Shaft Impact Crusher, PL series Vertical Shaft Impact Crusher(sand making machine), TYP series Cone Crusher, HC series Cone Crusher, YKJ(SZZ) series Inclined Vibrating Screen, HLH series Horizontal Vibrating Screen and Conveyor System, etc.



Our TONGHUI brand crushers have been sold to 30 provinces all over China. Our mining crushers are also exported to France, Japan, Spain, Australia, India, Indonesia, Sri Lanka, Nigeria, etc.



Tonghui will continue to hold the TONGHUI spirit. Our Honest and Trust Worthy in business will lead us to satisfy more and more customers around the world.
