Product Details:
|
| Condition: | New | Application: | Mining,Quarry,Ore,granite |
|---|---|---|---|
| Weight: | According To Model | Warranty: | 1 Year |
| Type: | Impact Crusher | Motor Type: | AC Motor |
| After-sales Service Provided: | Video Technical Support | Color: | Customizable |
| Capacity(t/h): | 30-500tph | ||
| High Light: | Ore Impact Stone Crusher,PF Series Impact Stone Crusher,Impact Stone Crusher 250t/H |
||

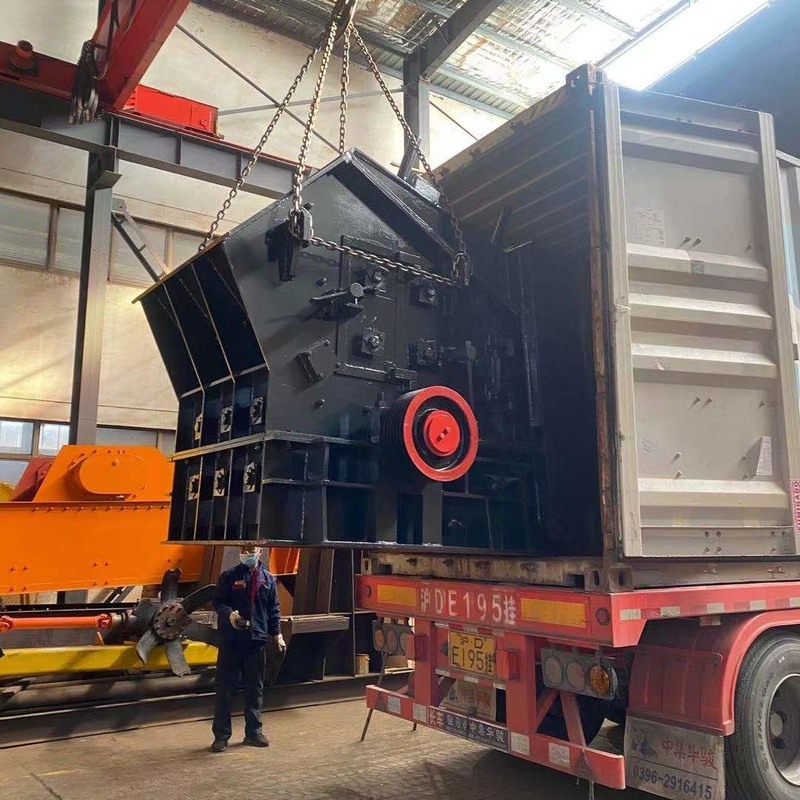

Ore Crushing Machine Stone Impact Crusher
Tonghui Impact crusher are designed for crushing ores and rocks with particle sizes less than 120-500mm and compression strength under 320Mpa. It has a feature of big primary reduction ratio,high efficiency,cubic shape,selectable crushing and etc.It is suitble for crushing different compression strength of rocks and is used in mining,cement and concrete industries.
|
Model |
Feed Opening Size |
Max. Feed Size |
Discharge Size |
Power |
Capacity |
Overall Size(L*W*H) |
| PF1007 | 400*730mm | 300mm | 20~60mm | 55kW | 30~50t/h | 2400*1560*2660mm |
| PF1010 | 400*1080mm | 350mm | 20~60mm | 75kW | 50~80t/h | 2400*1900*2620mm |
| PF1210 | 400*1080mm | 350mm | 20~60mm | 132kW | 70~120t/h | 2620*2070*2720mm |
| PF1214 | 400*1430mm | 350mm | 20~60mm | 160kW | 130~180t/h | 2720*2720*2890mm |
| PF1315 | 860*1520mm | 500mm | 20~60mm | 220kW | 160~250t/h | 3164*2684*2600mm |
