Product Details:
|
Type: | Cone Crusher | Motor Type: | AC Motor |
---|---|---|---|
Capacity(t/h): | 330-725 | Condition: | New |
Warranty: | 1 Year | Application: | Mining,construction,Quarry,etc |
After-sales Service Provided: | Online Support | Weight: | 50000kgs |
Spare Parts Supply: | Will Supply Any Time | ||
High Light: | 300kW Spring Cone Rock Crusher,Quarry Cone Rock Crusher,300kW Quarry Spring Cone Crusher |

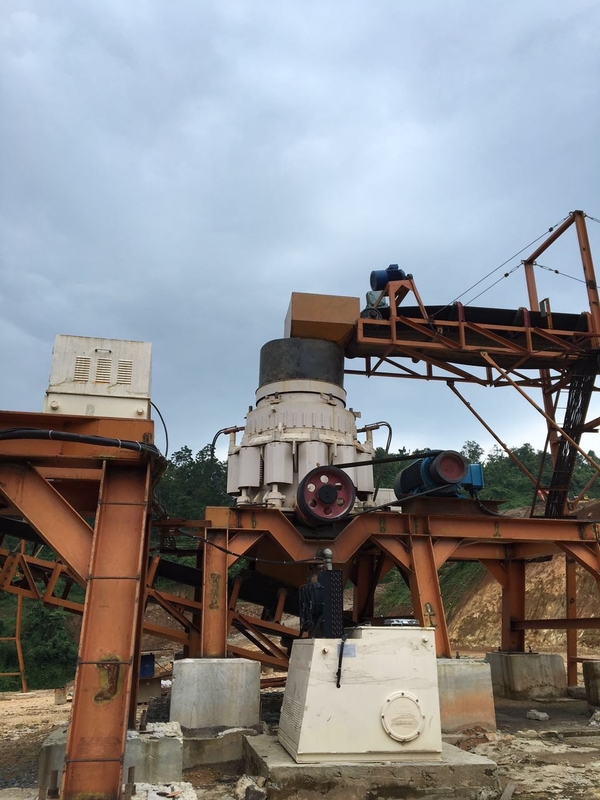

Mining Rock Crusher Cone Crushing Machine Spring type
Features:
1. Higher capacity and less wear costs.
2. Wide range of application suitability.
3. Easy to maintain, reduce the downtime and maintenance costs.
4. Stable running performance and easy operation.
5. Stable bevel wheel transmission device
6. Balanced run out rotation ensures capacity.
7. Proper operation, continuously load until the machine shut down scheduled.
Working principle
When cone crusher begins to work, the electric motor drives the eccentric sleeve through the spring coupling, drive shaft and a pair of angle gear, so that the crushing wall of cone crusher gets close to and then gets away from the surface of the rolling mortar wall fixed on the adjusting sleeve, and the ores inside the crushing chamber will be constantly impacted, squeezed and bent to be crushed.
Model:
Model |
Max. Feed Size |
Discharge Size |
Power |
Weight |
Capacity |
HCC45 | 180mm | 13~38mm | 110~132kW | 15500kg | 115~260t/h |
HCF45 | 130mm | 10~25mm | 110~132kW | 15500kg | 100~175t/h |
HCS45 | 90mm | 10~19mm | 110~132kW | 15500kg | 80~140t/h |
HCSS45 | 60mm | 10~19mm | 110~132kW | 15500kg | 74~130t/h |
HCC54 | 215mm | 19~51mm | 180~220kW | 26300kg | 200~420t/h |
HCF54 | 160mm | 16~25mm | 180~220kW | 26300kg | 155~220t/h |
HCS54 | 115mm | 13~22mm | 180~220kW | 26300kg | 150~230t/h |
HCSS54 | 80mm | 10~19mm | 180~220kW | 26300kg | 122~200t/h |
HCC66 | 260mm | 22~63mm | 250~300kW | 50000kg | 330~725t/h |
HCF66 | 200mm | 16~25mm | 250~300kW | 50000kg | 230~330t/h |
HCS66 | 140mm | 10~19mm | 250~300kW | 50000kg | 185~340t/h |
HCSS66 | 95mm | 10~19mm | 250~300kW | 50000kg | 180~335t/h |
Our Services:
Service is one of the most important parts in the whole business. We are always devoted to meeting customer’s need. We insist on providing customers with one-stop service, from model choosing, installation and test run, personnel training, technical support to maintenance.
Before service: Before the contract is signed, we will act as a good adviser and assistant to help customers choose the most suitable equipment and production line, all for the capacity increasing and cost reducing. We design and produce machines according to the actual requirements of customers.
During and after service: After the contract is signed, (1)we will send our most experienced technicians to make an inspection of the working site, (2)our technicians will help customers make a decision on site planning and designing, (3)technology department will offer a installation foundation drawing, (4)finally, technicians will assist customer in the construction. When all the equipment has been delivered to the site, our company will send staff to assist customer in installation and run test. Our company will also provide customer with free training to help customer master the use and simple maintenance of the machines. Once the machine is out of order at work, our company will set up a clear solution during 24 hours after customer’s phone call. Recover the production first, and then ascertain where responsibility lies.
About Us:
Zhejiang Tonghui Crushing Machinery Co.,Ltd. (Used name as Haiyan Tonghui Mining Crusher Machinery Co.,Ltd) is a high-tech small and meduim enterprise in Zhejiang Province, and verified as a high-tech enterprise of Zhejiang province in 2018. Tonghui has passed Quality Management System Certificate of GB/T19001-2016 ISO9001:2015. Tonghui was founded in 1968 as a state-owned company and reformed as a private enterprise in 1993 as a professional manufacturer of complete mining machinery. It created the brand of “TONGHUI”. During the past 50 years, TONGHUI people inherit the true spirit of “CUSTMERS’ DELIGHT IS OUR GROWTH” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers. The company scale expands graually, and the brand popularity and recognition enhances day by day. TONGHUI is a Jiaxing famous brand and recognized as Zhejiang famous brand as well. Haiyan Tonghui Foundry Co.,Ltd is a subsidiary company of Zhejiang Tonghui with 28000m2 as its production factory area.
TONGHUI has a special foreign trade department with its independent import and export right. TONGHUI also has a professional after-sales service team, which provids exquisite and thoughful service. TONGHUI’s products are not only sold to 30 provinces and regions of China, but also to France, Spain, Australia, Sri Lanka, Indonesia, Chile, Ethiopia, Nigeria, etc. TONGHUI’s annual output value reached CNY100 million and sales profit reached CNY100 as well with CNY3.89 million as profits and taxes in 2012.
