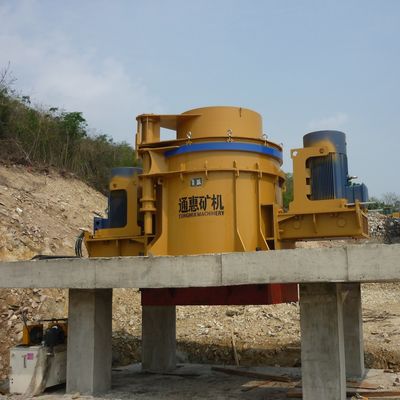

ODM VSI Crusher Machine Artificial Sand Making Plant 75db Low Noise

ODM VSI Crusher Machine Artificial Sand Making Plant 75db Low Noise
ODM VSI Crusher Machine Artificial Sand Making Plant 75db Low Noise

Large Image :  ODM VSI Crusher Machine Artificial Sand Making Plant 75db Low Noise

Product Details:
Place of Origin: CHINA
Brand Name: TONGHUI
Model Number: TT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Delivery Time: 15 days
Payment Terms: L/C, T/T

ODM VSI Crusher Machine Artificial Sand Making Plant 75db Low Noise

Description
Condition: New Capacity(t/h): According To The Model
Warranty: 1 Year Motor Type: AC Motor
Application: Mining,Quarry,stone,etc. Type: VSI Crusher
Factory Visit: Welcomed Warmly Color: Customizable
High Light:

ODM VSI Crusher Machine

,

ODM Artificial Sand Making Plant

,

ODM VSI Crusher Machine

Artificial Sand Making Machine VSI Crusher Machine



VSI crusher is also named Sand making machine which features a unique combination of rotor design, wear material and crushing equipment design. This combination has proved revolutionary in improving capacity, gaining superior product shape quality and in reducing operating and wear costs. Impact crusher is a high-efficient rock crushing equipment with home and international leading level. It is widely used for crushing of hard and crispy materials, such as rocks, grinding materials, refractory materials, cement clinkers, quartzite, iron ores and concrete aggregates. It is especially suitable for the sand and sandstone making for construction and road paving. It is more suitable for crushing mid-hardness materials and high-hardness materials. Its product is cubic, and the density of piling up is high and the iron pollution is low. It can protect our environment better with the working noise less than 75 decibels and little dust pollution.



Working Principles:

Material falls into the high speed turning impellers from the top of machine and crushes with the material distributed around the impeller under the effect of high speed centrifugal force. After the impact with each other, the material is crushed between impeller and cabinet and is discharged from the bottom. It can cycle many times with the close circuit and the sieve device will control the granularity of finished products.





Features:

1. Excellent performance and high final fineness

2. Safe and user-friendly

3. Smooth and quiet operation

4. Minimum maintenance

5. Heavy duty design

6. Long service life

7. Standard replacement parts

8. Cost effective

9. Cubically shaped product

10. High productivity



Model

Impeller Dia.(mm)

Power

(kW)

Impeller Speed

r/min

Max. Feed Size mm

Through Capacity(T/h)

Weight(w/o motor)

kg

TT750 710 (75-132)*2 1800-2200 50 50-180 12000
TT850 910 (90-200)*2 1400-1800 50 100-250 12500
TT950 910 (160-250)*2 1300-1700 50 200-350 14500



Company Profile



Tonghui was firstly founded in 1968 as a state-owned company in machine building industry. It was reformed as a private enterprise in 1993 and firstly created the brand of “TONGHUI”. Tonghui is Jiaxing high-tech company and verified as technology-based SMEs of Zhejiang province. Tonghui has passed Quality Management System Certificate of GB/T19001-2000 ISO9001:2000. During the past 40 years, Tonghui people inherit the true spirit of “customer’s delight is our growth” and make efforts to insist on BEST QUALITY WITH LOW COST AND HONEST MANAGEMENT to develop company scale and make “TONGHUI” known by customers.



Tonghui have 4 subsidiaries as follows, Tonghui Machinery, Tonghui Foundry, the Third Machinery Factory and Sanya Lingshui Changxing Quarry. Total production area covers 12000m2. Annual production turnover reaches to RMB 100 million (USD 14.7 million).

Tonghui is specialized in producing complete plant of mining crushing and screening machines. Main products are listed as follows, ZSW series Vibrating Feeder, PE series toggle Jaw Crusher, PF series Horizontal Shaft Impact Crusher, PL series Vertical Shaft Impact Crusher(sand making machine), TYP series Cone Crusher, HC series Cone Crusher, YKJ(SZZ) series Inclined Vibrating Screen, HLH series Horizontal Vibrating Screen and Conveyor System, etc.
